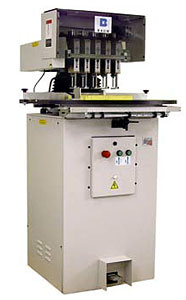

Baum D5-ST 5-Spindle Drill

Low Price Guarantee
  The five-spindle Baum D5-ST drill is hydraulically powered and features moveable heads which can easily be adjusted by loosening lock knob by hand. A safety off feature is enabled when guard is lifted. There are no tools required when inserting or removing drill bits.

Baum D5-STFeatures
• Hydraulically operated
• Moveable table and heads
• Motor overload feature
• Capable for drilling though medical forms
• Lift capacity of 2 inches (5.1cm)
• Center to center minimum: 1-1/4 in (3.18cm)
• Drill bit sizes available: 1/8 to 1/2 in diameter (3.1 to 12.7mm)
• Electrical requirements: 220V/1/60 or 220V/1/50 or 220V/3/60 or 380-415V/3/50

Retail Price  $10,485
Drilling Capacity 2" / 51 mm
Throat Depth 2"
No. of Spindles 5
Electrical 220/1/60 19 amps
Motor (spindle / pump) 1 Horsepower / 1 Horsepower
Table Size 22.75" x 29"
Overall Size 37.5"D x 26"W x 70"H
Shipping Weight 850 lbs / 386 kg

We are an authorized dealer for this Baum product. We have been in business since 2000, and have 30 employees to sell and support our equipment. Please call us today, and we will beat any price you find on this product.
