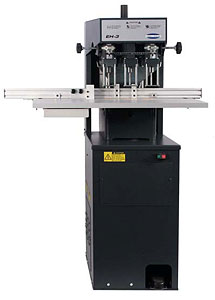

Challenge EH-3C Heavy-Duty Paper Drill

Low Price Guarantee

  The heavy-duty Challenge EH-3 paper drill makes drilling easy. The machine is hydraulically operated via foot pedal. The heads are also adjustable and allows inserting or removal of bits without the
use of tools.

Challenge EH-3CFeatures
• Hydraulically operated
• Lift capacity of 2-1/2 inches(6.4cm)
• Drilling range between drills: 2-3/4" to 4-1/2"/ 7-11 cm
• Drilling range outside of drills: 5-1/2" to 9"/14-23 cm
• Drill bit sizes available for 2": 1/8" to 1/2" / 3 to 13 mm
• Drill bit sizes available for 2-1/2": 1/4" to 1/2" / 6 to 13 mm
• Up to 18 strokes per minute
• Moveable head adjustment
• Electrical requirements: 208V/18 amps or 230V/17 amps

Specifications
Retail Price  $6,995
Drilling Capacity 2-1/2" / 63 mm
Throat Depth not available
No. of Spindles 3
Electrical 208 Volts, 18 Amps or 230 Volts, 17 Amps
Motor  1/2 Horsepower
Table Size 19-1/2" x 31-1/2"
Overall Size 59-1/4"
Shipping Weight 570 lbs / 259 kg


We are an authorized dealer for this Challenge product. We have been in business since 2000, and have 30 employees to sell and support our equipment. Please call us today, and we will beat any price you find on this product.
