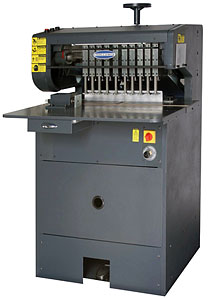

Challenge MS-10

Low Price Guarantee

  The Challenge MS-10 is a heavy-duty paper drilling machine. It drills up to 10 holes at one time and is foot pedal operated. It features automatic chip removal for easy cleaning. The backgauge, side guides, and heads are easily adjustable. This product is made out of cast iron so it will last for many years.

Challenge MS-10Features
• Hydraulically operated
• Drill capacity of 2-1/2 inches (6.4cm)
• Multi-hole drilling
• Side guide adjustments
• Vertical Adjustment of Individual Heads: 1/4" / 6 mm
• Backgauge Adjustment: 0 to 9" / 0 to 23 cm
• Approximately 18 - 26 strokes per minute
• Distance Between Holes with Fixed Gauges: 1/4" / 6 mm
• Distance Between Holes with Adj. Stops: 3/8" / 9.5 cm
• Center to center minimum: 1-1/4" / 3.2 cm
• Center to center maximum: 21" / 53 cm
• Drill bit sizes available for 2": 1/8" to 1/2" / 3 to 13 mm
• Drill bit sizes available for 2-1/2: 1/4" to 1/2" / 6 to 13 mm
• Electrical requirements: 208V/26.5 amps or 460V/24.2 amps

Specifications
Retail Price  $15,995
Drilling Capacity 2-1/2" / 63 mm
Throat Depth 0 to 9" / 0 to 22.9cm
No. of Spindles Up to 10 (not included)
Electrical 208 Volts, 26.5 Amps or 230 Volts, 24.2 Amps
Motor (spindle) 3 Horsepower
Table Size 24" x 36"
Overall Height 60"
Shipping Weight 1660 lbs / 830 kg


We are an authorized dealer for this Challenge product. We have been in business since 2000, and have 30 employees to sell and support our equipment. Please call us today, and we will beat any price you find on this product.
