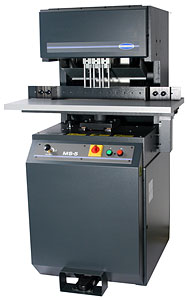

Challenge MS-5

Low Price Guarantee

  The Challenge MS-5 includes 3 standard heads with the ability to add two more. The backgauge side guides and drill length are easy to adjust. This is an easy machine to operate with up to 18 cycles per minute. It fits 13 different drill bit sizes in 2" drill bits and 4 sizes in 2-1/2" drill bits.

Challenge MS-5Features
• Drill capacity of 2-1/2 inches (6.4cm)
• Backgauge adjustments: 0 to 5" / 0 to 13 cm
• Drill bit sizes available for 2": 1/8" to 1/2" / 3 to 13 mm
• Vertical Adjustment of Individual Heads: 1/4" / 6 mm
• Drill bit sizes available for 2-1/2: 1/4" to 1/2" / 6 to 13 mm
• Maximum center to center distance: 15" / 38 cm
• Minimum center to center distance: 1-7/8" / 48 mm
• Up to 18 strokes per minute
• Floor space needed: 36" x 36" / 92 x 92 cm
• electrical requirements: 208/230V/ 18 amps

Specifications
Retail Price  $9,295
Drilling Capacity 2-1/2" / 63 mm
Throat Depth 12.7"
No. of Spindles Includes: 3 (Add up to 2 more)
Electrical 208/230 Volts, 18 Amps (service size 30 Amps)
Motor (pump/motor) 1/2Horsepower / 1-1/2 Horsepower
Table Size 17-3/4" x 34"
Overall Height 56"
Shipping Weight 910 lbs / 410 kg


We are an authorized dealer for this Challenge product. We have been in business since 2000, and have 30 employees to sell and support our equipment. Please call us today, and we will beat any price you find on this product.
